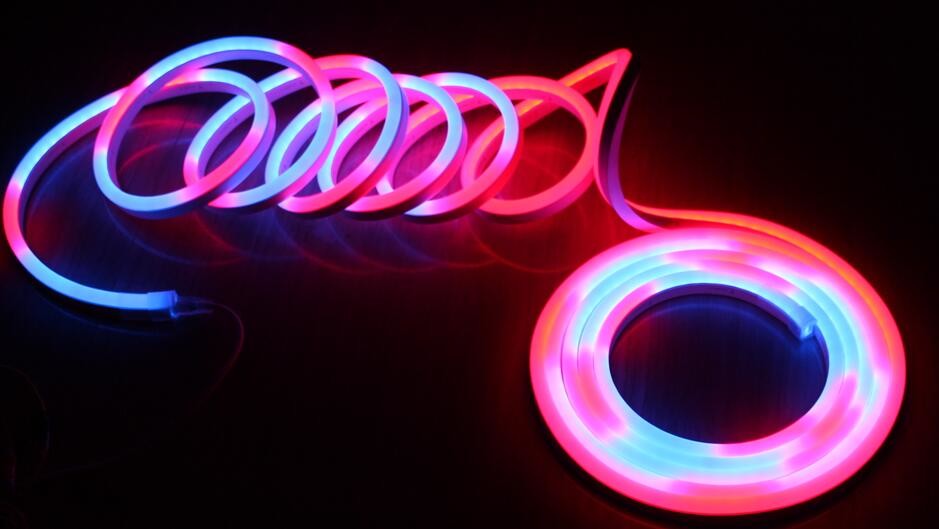

24v flat ws2811 addressable rgb led neon flexible 11x19mm digital neon rope strips

24v flat ws2811 addressable rgb led neon flexible 11x19mm digital neon rope strips

Product Details:

Place of Origin: shenzhen china
Brand Name: topsungtech
Certification: CE,ROHS,UL
Model Number: DSNF-1717-24V

Payment & Shipping Terms:

Minimum Order Quantity: 50meter
Price: US$20-25/meter
Packaging Details: 50meter per roll
Delivery Time: 5-7 days
Payment Terms: T/T, paypal, credit card, western Union
Supply Ability: 5000 meters per week
Contact Now
Detailed Product Description
Light Source: LED Item Type: Neon Lights
LED Light Source: SMD Input Voltage: 24V
Lamp Power: 12W/M Lamp Luminous Flux(lm): 750
CRI (Ra>): 80 Working Temperature(℃): -20 - 50
Working Lifetime(Hour): 50000 Lamp Body Material: PVC
IP Rating: IP 65 Emitting Color: Changeable
LED Spacing(CM): 1.66 Cutting Unit: 10cm

24v flat ws2811 addressable rgb led neon flexible 11x19mm digital neon rope strips



FEATURE & SPECIFICATION OF LED NEON LIGHT


Manufacturer: Topsung Lighting





Feature of Topsung Digital Neon




This Digital LED neon come with P943 IC, 10 pixel per/M,

can be controlled & addressed by DMX controller

It's waterproof IP67 and UV resistance,can be used outdoor,

with milky white diffuser and high lumen Epistar LEDs,it's super

bright and smooth emitting. 24V safer for complication.

Addressable and Programmable



Hundreds of changing modes:

  • Steady
  • Flashing
  • Fading
  • Chasing
  • Jumping

Feature of LED digital neon Flex:
  •  Good Flexibility
  •  Long life and Durability
  •  Energy Saving
  •  Safety
  •  Low voltage, Low energy used and cutting
  •  High and Even Brightness
  •  Transportable and Easy to Install
Specification of led digital neon light:
  • LED Neon Flex
  • Dimension: 14*26mm
  • Water-proof IP65
  • LED QTY:60-70leds/M
  • Lumen/Meter: 300-400lm/M (white,warm white)
  • Power: 12.5/M
  • Input voltage: 24V
  •
 360 Digital LED Neon-Flex (Topsung Lighting)
 ltem NO  DSNF-1119-24V
 LED color  RGB
 Length per roll in Meters  20
 Size (mm)  11x19mm  Flat Surface
 LED spacing (mm)   16.6
 LED quantity per meter  60-70
 Cutting Unit length (cm)  10
 LED quantity per unit  16
 Power consumption per meter  MAX 12.5W
 Max Loading Length (meter)  10
 Voltage  24V DC
 Control mode:   DMX +SPI

More pictures for Flat Surface Digital Neon-Flex Strips



24v flat ws2811 addressable rgb led neon flexible 11x19mm digital neon rope strips

24v flat ws2811 addressable rgb led neon flexible 11x19mm digital neon rope strips

24v flat ws2811 addressable rgb led neon flexible 11x19mm digital neon rope strips24v flat ws2811 addressable rgb led neon flexible 11x19mm digital neon rope strips24v flat ws2811 addressable rgb led neon flexible 11x19mm digital neon rope strips24v flat ws2811 addressable rgb led neon flexible 11x19mm digital neon rope strips24v flat ws2811 addressable rgb led neon flexible 11x19mm digital neon rope strips



ACCESSORIES & PACKING


Accessories: (Some models no so many accessories, please contact us)
undefined

undefined

Packing Details:

50meter per roll per carton

Installation Notes
*A Catalog is not a substitute for user manual.
*Always follow the cut marks provided user manual
*Cut only on the cut marks provided on the fixture housing
*When applying linear solutions to a channel make certain to use an appropriate silicone adhesive between the base of the channel profile and fixture housing to eliminate stretching over time.


PAYMENT&SHIPMENT&WARRANTY


undefined

CERTIFICATE


Most of our Products has passed CE,ROHS, FCC, PSE, certificate

undefined


FACTORY & CONTACT INFO


Shenzhen Topsung Lighting Co.,Limited with 11 years' rich experience on design/develop/export LED Products is one of the Factory of Topsung Industrial Co.,LTD. Its main procuts include: LED decoration lights (Neon, Rope, Strips,ect) & Indoor LED lights (tube, bulb, downlight, panel light,ect). Topsung Lighting cares about customer's request and deveoped new design lighting products. Welcome your inquiry!

Tel: 86-15994785513    Mail: sales (at)topsung-tech.cn    Skype:topsungled

undefined
Digital IC Neon-Flex RGB
  • 360 Degree Round Neon (Digital) 16mm Diameter
  • Dome Standard magic digital neon 14x26mm, 11x18mm
  • Flat /square Magic digital neon-flex 11x19mm or 17x17mm
24v flat ws2811 addressable rgb led neon flexible 11x19mm digital neon rope strips
1> Digital RGB Neon-Flex 24V 10pixel/M

Dome Shape:
  • 11x18mm
  • 14x26mm

Flat & Square Shape:
  • 17x17mm
  • 11x19mm
360 degree neon
  • 18mm






Hundreds of changing modes:

  • Steady
  • Flashing
  • Fading
  • Chasing
  • Jumping
  • Mono color
  • Multi Color
24v flat ws2811 addressable rgb led neon flexible 11x19mm digital neon rope strips
2>Common RGB Neon-Flex
Dome Shape:
  • 11x18mm
  • 14x26mm

Flat & Square Shape:
  • 17x17mm
  • 11x19mm
360 degree neon
  • 18mm
Tens of changing modes:
  • Steady (mono)
  • Flashing(mono)
  • Fading(multi)
24v flat ws2811 addressable rgb led neon flexible 11x19mm digital neon rope strips 3> RGBW 4 Chip Neon-Flex
Dome Shape:
  • 14x26mm

Flat & Square Shape:
  • 17x17mm
Tens of changing modes:
  • Steady (mono)
  • Flashing(mono)
  • Fading(multi)
















































  Thanks for reading!Feel free to contact us for the update information & price!
