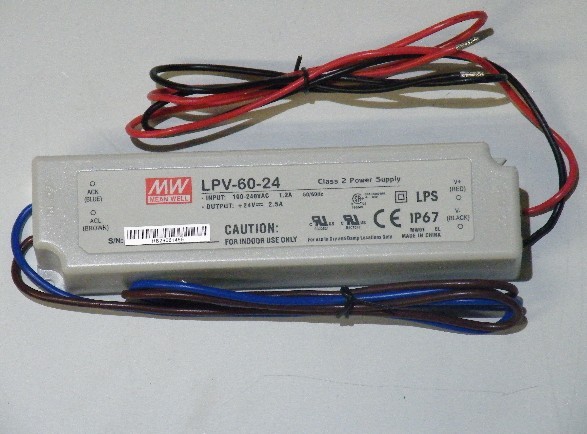

Meanwell led driver LPV-60-24

Meanwell led driver LPV-60-24

    • Meanwell led driver LPV-60-24
    • Meanwell led driver LPV-60-24
  • Meanwell led driver LPV-60-24

    Product Details:

    Place of Origin: Guangdong,China
    Brand Name: Topsung
    Certification: CE,ROHS,UL
    Model Number: lpv-60-24

    Payment & Shipping Terms:

    Minimum Order Quantity: 2pc
    Price: US$10-40/pcs
    Packaging Details: 1pcs/box
    Delivery Time: 5-7 working days
    Payment Terms: L/C,T/T,Western union,Money Gram,Paypal
    Supply Ability: 5000pcs per week
    Contact Now
    Detailed Product Description
    Connection: Connect To Wire Usage: Light

    Meanwell led driver LPV-60-24



    FEATURE & SPECIFICATION




    Manufacturer: Topsung Lighting





    meanwell led driver lpv-60-24
    Water proof IP67
    Input:100-240V
    Output:24VDC




    meanwell led driver LPV-60-24

    LPV-60 Series are 60W AC/DC enclosed, non PFC design, switching power supplies. LPV-60 models offer constant voltage mode and high IP rating to protect the electronic components from dust and moisture, making suitable for use in harsh locations. LPV-60 Series possesses high efficiency and can operate between -30°C ~ +70°C using only free air convection. To protect the unit from sudden high surge for unstable AC line, LPV-60 can withstand 300VAC input surge for 5 seconds.



    Specification:



    Input Voltage 90 ~ 264Vac
    Input Frequency 47 ~ 63Hz
    Input Current 1.2A/115Vac 1A/230Vac
    Inrush Current 30A/115Vac 60A/230Vac, cold start
    Leakage Current 0.25mA / 240Vac
    Line Regulation ±1.0%
    Set Up, Rise Time 500ms, 20ms / 230Vac 500ms, 20ms / 115Vac at full load (for 5~36V)
      500ms, 30ms / 230VAC 500ms, 30ms / 115VAC at full load(for 48V)
    Hold Up Time 50ms/230Vac 16ms/115Vac at full load
    Over Current Protection 110 ~ 150% rated output power
      Hiccup mode, recovers automatically after fault condition is removed
    Over Voltage Protection Shut down o/p voltage, re-power on to recover
    Working Temperature -30°C ~ +70°C (Refer to output load derating curve)
    Working Humidity 20 ~ 90% RH non-condensing
    Storage Temperature, Humidity -40°C ~ +80°C, 10 ~ 95% RH
    Temperature Coefficient ±0.03%/°C (0 ~ 50°C)
    Vibration 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
    Withstand Voltage I/P-O/P:3KVAC
    Isolation Resistance I/P-O/P:>100M Ohms/500VDC 25°C 70%RH
    Safety Standards UL1310 Class 2, CAN/CSA C22.2 No. 223-M91(except for 5V,48V), IP67 approved,
      Design refers to TUV EN60950-1, EN61347-2-13
    EMC Compliance to EN55022 (CISPR22) Class B; EN61000-3-2,-3;
      EN61000-4-2,3,4,5,6,8,11; ENV50204, EN55024, light industry level, criteria A
    MTBF 732Khrs min. MIL-HDBK-217F (25°C)
    Dimensions 162.5 x 42.5 x 32mm



    Meanwell LPV power supply:we have 35W,60W,100W,150W
