30w classic street lighting square led flood light garden pathway lamps with sensor for outdoor
Product Details:
| Place of Origin: | China |
| Brand Name: | Topsung Lighting |
| Certification: | TUV SAA C-Tick CE RoHS CB SAA UKCA |
| Model Number: | TS-S9-30W |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | US$10-30/pc |
| Packaging Details: | 1pc/carton |
| Delivery Time: | 3-7 days |
| Payment Terms: | T/T, Western Union, MoneyGram, Paypal |
| Supply Ability: | 1000 sets per week |
|
Detail Information |
|||
| Color: | White | Warranty: | 8-10 Years |
|---|---|---|---|
| Power: | 30w | ||
Product Description
Commodity: 30w classic street lighting square led flood light garden pathway lamps with sensor for outdoor
Feature of Topsung LED Street Lights
1. Adopt 1060 pure aluminum hydraulic molding process, light weight, special surface spray treatment, beautiful and elegant product;
2.6-in-1 lenses include: T2M (100*155 polarized 45 degrees), T3M (90*155 polarized 50 degrees), T4M (120*155 polarized 60 degrees), 60 degrees, 90 degrees;
3. Equipped with a respirator lens to make the lamp breathable, dry and fog-free;
4. The lamp is waterproof and dustproof up to IP65;
5. Adopt Ph ilips single low-power EMC5050 lamp beads in series and parallel design, constant current LED driver;
6. Mounting head aperture (MM) 40/50/60mm optional, standard configuration is 60mm.
Installation method: hoisting, pipe installation, bracket installation optional.
Functions options:
1) 1-10V Dimmable
2) Can use intellegent street system
3) can connect smart controller
4) Can be installed horizontally or vertically
5) can install spirit level
6) Warranty: 10 years warranty
Specification of Topsung LED Street Lamps
| Commodity Name | Model No | Description | |||||
| Power | Dimension | Luminous Flux | Input Voltage | RA | Lifespan | ||
| TS9 StreetLight 150-160LM/W | TS9-30W-XXK | 30W | 568*200*109mm | 4800LM | AC200-277V | ≥70 | 50000H |
| TS9-50W-XXK | 50W | 8000LM | AC200-277V | ≥70 | 50000H | ||
| TS9-80W-XXK | 80W | 12800LM | AC200-277V | ≥70 | 50000H | ||
| TS9-100W-XXK | 100W | 613*240*109mm | 16000LM | AC200-277V | ≥70 | 50000H | |
| TS9-150W-XXK | 150W | 683*260*109mm | 24000LM | AC200-277V | ≥70 | 50000H | |
| TS9-200W-XXK | 200W | 693*300*109mm | 32000LM | AC200-277V | ≥70 | 50000H | |
| TS9-250W-XXK | 250W | 40000LM | AC200-277V | ≥70 | 50000H | ||
| TS9-300W-XXK | 300W | 793*300*109mm | 48000LM | AC200-277V | ≥70 | 50000H | |

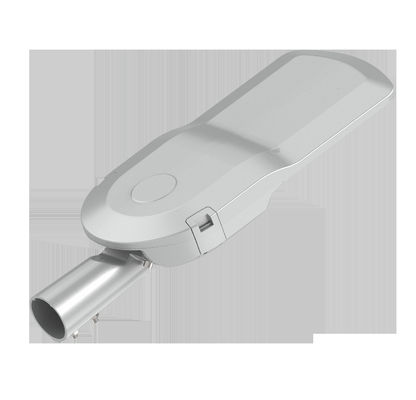

Pictures of Topsung LED Road Lights
