| Place of Origin: | shenzhen china |
| Brand Name: | topsungtech |
| Certification: | CE,ROHS,UL |
| Model Number: | DSNF-1119-24V |
| Minimum Order Quantity: | 50meter |
|---|---|
| Price: | US$20-25/meter |
| Packaging Details: | 50meter per roll |
| Delivery Time: | 5-7 days |
| Payment Terms: | T/T, paypal, credit card, western Union |
| Supply Ability: | 5000 meters per week |
| Light Source: | LED | Item Type: | Neon Lights |
|---|---|---|---|
| LED Light Source: | SMD | Input Voltage: | 24V |
| Lamp Power: | 12W/M | Lamp Luminous Flux(lm): | 750 |
| CRI (Ra>): | 80 | Working Temperature(℃): | -20 - 50 |
| Working Lifetime(Hour): | 50000 | Lamp Body Material: | PVC |
| IP Rating: | IP 65 | Emitting Color: | Changeable |
| LED Spacing(CM): | 1.66 | Cutting Unit: | 10cm |
Side-view flat 11*19mm high cri rgbw dmx color changing addressable digital dmx led neon
Manufacturer: Topsung Lighting
Feature of Topsung Digital Neon
This Digital LED neon come with P943 IC, 10 pixel per/M,
can be controlled & addressed by DMX controller
It's waterproof IP67 and UV resistance,can be used outdoor,
with milky white diffuser and high lumen Epistar LEDs,it's super
bright and smooth emitting. 24V safer for complication.
Addressable and Programmable
Hundreds of changing modes:
| 360 Digital LED Neon-Flex (Topsung Lighting) | |
| ltem NO | DSNF-1119-24V |
| LED color | RGB |
| Length per roll in Meters | 20 |
| Size (mm) | 11x19mm Flat Surface |
| LED spacing (mm) | 16.6 |
| LED quantity per meter | 60-70 |
| Cutting Unit length (cm) | 10 |
| LED quantity per unit | 16 |
| Power consumption per meter | MAX 12.5W |
| Max Loading Length (meter) | 10 |
| Voltage | 24V DC |
| Control mode: | DMX +SPI |

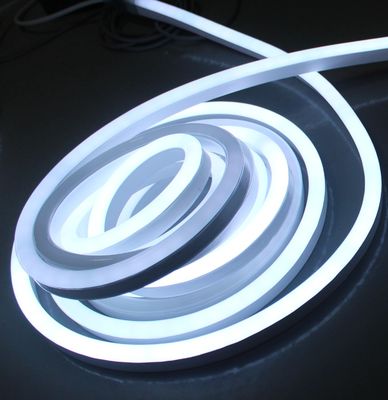

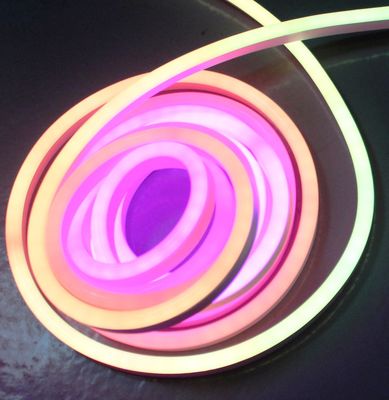

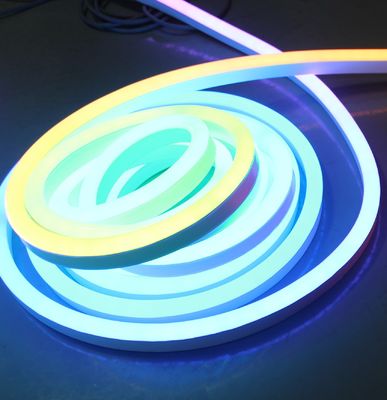

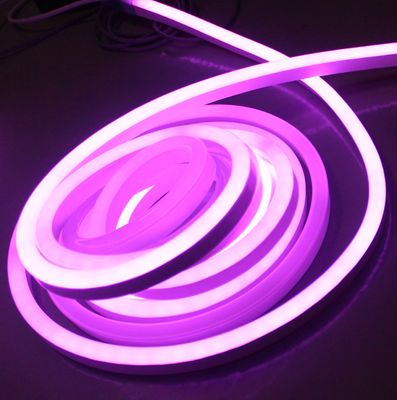

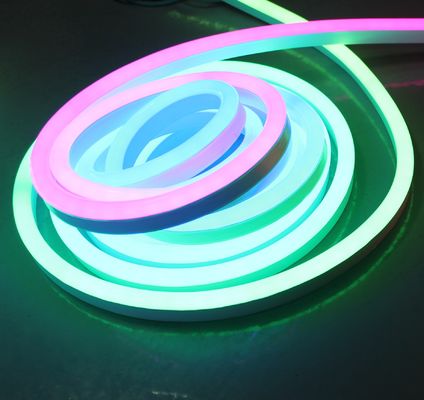

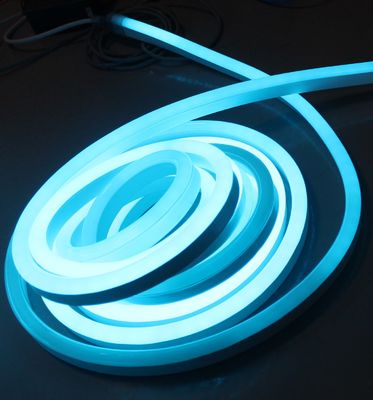

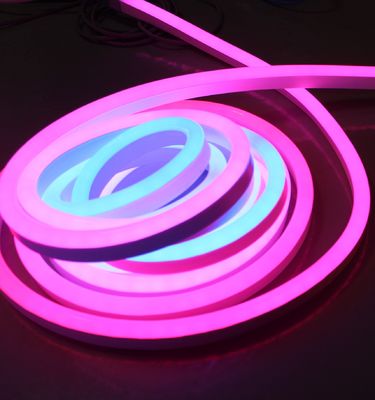

More pictures for Flat Surface Digital Neon-Flex Strips
Accessories: (Some models no so many accessories, please contact us)
Packing Details:
50meter per roll per carton
Installation Notes
*A Catalog is not a substitute for user manual.
*Always follow the cut marks provided user manual
*Cut only on the cut marks provided on the fixture housing
*When applying linear solutions to a channel make certain to use an appropriate silicone adhesive between the base of the channel profile and fixture housing to eliminate stretching over time.
Most of our Products has passed CE,ROHS, FCC, PSE, certificate
Shenzhen Topsung Lighting Co.,Limited with 11 years' rich experience on design/develop/export LED Products is one of the Factory of Topsung Industrial Co.,LTD. Its main procuts include: LED decoration lights (Neon, Rope, Strips,ect) & Indoor LED lights (tube, bulb, downlight, panel light,ect). Topsung Lighting cares about customer's request and deveoped new design lighting products. Welcome your inquiry!
Tel: 86-15994785513 Mail: sales (at)topsung-tech.cn Skype:topsungled
|
1> Digital RGB Neon-Flex 24V 10pixel/M
Dome Shape:
Flat & Square Shape:
360 degree neon
|
Hundreds of changing modes:
|
|
2>Common RGB Neon-Flex
Dome Shape:
Flat & Square Shape:
360 degree neon
|
Tens of changing modes:
|
|
3> RGBW 4 Chip Neon-Flex
Dome Shape:
Flat & Square Shape:
|
Tens of changing modes:
|
Thanks for reading!Feel free to contact us for the update information & price!
