300W modern classic street lighting Garden Road Tunnel 160lm/W smart street lamp system
Product Details:
Place of Origin: | China |
Brand Name: | Topsung Lighting |
Certification: | TUV SAA C-Tick CE RoHS CB SAA UKCA |
Model Number: | TS-S9-300W |
Payment & Shipping Terms:
Minimum Order Quantity: | 1pc |
---|---|
Price: | US$50-150/pc |
Packaging Details: | 1pc/carton |
Delivery Time: | 3-7 days |
Payment Terms: | T/T, Western Union, MoneyGram, Paypal |
Supply Ability: | 1000 sets per week |
Detail Information |
|||
Color: | White | Warranty: | 8-10 Years |
---|---|---|---|
Power: | 300w |
Product Description
Commodity: 300Watt modern classic street lighting Garden Road Tunnel 160lm/W smart street lamp system
Feature of Topsung LED Street Lights
1. Adopt 1060 pure aluminum hydraulic molding process, light weight, special surface spray treatment, beautiful and elegant product;
2.6-in-1 lenses include: T2M (100*155 polarized 45 degrees), T3M (90*155 polarized 50 degrees), T4M (120*155 polarized 60 degrees), 60 degrees, 90 degrees;
3. Equipped with a respirator lens to make the lamp breathable, dry and fog-free;
4. The lamp is waterproof and dustproof up to IP65;
5. Adopt Ph ilips single low-power EMC5050 lamp beads in series and parallel design, constant current LED driver;
6. Mounting head aperture (MM) 40/50/60mm optional, standard configuration is 60mm.
Installation method: hoisting, pipe installation, bracket installation optional.
Functions options:
1) 1-10V Dimmable
2) Can use intellegent street system
3) can connect smart controller
4) Can be installed horizontally or vertically
5) can install spirit level
6) Warranty: 10 years warranty
Specification of Topsung LED Street Lamps
Commodity Name | Model No | Description | |||||
Power | Dimension | Luminous Flux | Input Voltage | RA | Lifespan | ||
TS9 StreetLight 150-160LM/W | TS9-30W-XXK | 30W | 568*200*109mm | 4800LM | AC200-277V | ≥70 | 50000H |
TS9-50W-XXK | 50W | 8000LM | AC200-277V | ≥70 | 50000H | ||
TS9-80W-XXK | 80W | 12800LM | AC200-277V | ≥70 | 50000H | ||
TS9-100W-XXK | 100W | 613*240*109mm | 16000LM | AC200-277V | ≥70 | 50000H | |
TS9-150W-XXK | 150W | 683*260*109mm | 24000LM | AC200-277V | ≥70 | 50000H | |
TS9-200W-XXK | 200W | 693*300*109mm | 32000LM | AC200-277V | ≥70 | 50000H | |
TS9-250W-XXK | 250W | 40000LM | AC200-277V | ≥70 | 50000H | ||
TS9-300W-XXK | 300W | 793*300*109mm | 48000LM | AC200-277V | ≥70 | 50000H |

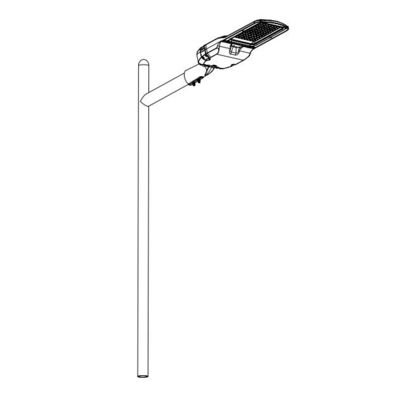

Pictures of Topsung LED Road Lights
