Addressable pixel neon flexible 24v digital dmx rgb led rope lighting
Product Details:
Place of Origin: | shenzhen china |
Brand Name: | topsungtech |
Certification: | CE,ROHS,UL |
Model Number: | DSNF-24V |
Payment & Shipping Terms:
Minimum Order Quantity: | 50meter |
---|---|
Price: | US$20-25/meter |
Packaging Details: | 50meter per roll |
Delivery Time: | 5-7 days |
Payment Terms: | T/T, paypal, credit card, western Union |
Supply Ability: | 5000 meters per week |
Detail Information |
|||
Light Source: | LED | Item Type: | Neon Lights |
---|---|---|---|
LED Light Source: | SMD | Input Voltage: | 24V |
Lamp Power: | 12W/M | Lamp Luminous Flux(lm): | 750 |
CRI (Ra>): | 80 | Working Temperature(℃): | -20 - 50 |
Working Lifetime(Hour): | 50000 | Lamp Body Material: | PVC |
IP Rating: | IP 65 | Emitting Color: | Changeable |
LED Spacing(CM): | 1.66 | Cutting Unit: | 10cm |
Product Description

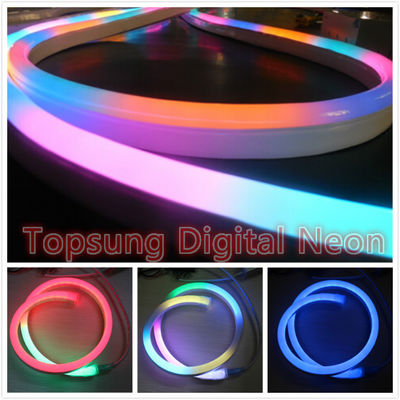

Addressable pixel neon flexible 24v digital dmx rgb led rope lighting
Manufacturer: Topsung Lighting
Feature of Topsung Digital Neon
This Digital LED neon come with P943 IC, 10 pixel per/M,
can be controlled & addressed by DMX controller
It's waterproof IP67 and UV resistance,can be used outdoor,
with milky white diffuser and high lumen Epistar LEDs,it's super
bright and smooth emitting. 24V safer for complication.
Addressable and Programmable
Hundreds of changing modes:
- Steady
- Flashing
- Fading
- Chasing
- Jumping
- LED Neon Flex
- Dimension: 14*26mm
- Water-proof IP65
- LED QTY:60leds/M
- Lumen/Meter: 750-850lm/M (white,warm white)
- Power: 12.5/M
- Input voltage: 24V
Features of best led digital neon flex price :
- Consistent and stringent wavelength control standards +/_3nm
- Ultra-bright & Low Light attenuation LEDs
- Milky white diffuser
- White PVC base edge to increase luminosity
- 100% unbreakable
- 100% waterproof
- Low heat
- Low maintenance coat
- 1/10 the energy consumption of glass neon
- Fully enclosed electronics: no exposed glass tubing as with neon
- Environmental protection
- Work temperature:-20°C~60°C
Digital LED Neon-Flex (Topsung Lighting) | |
ltem NO | DSNF-24V |
LED color | RGB |
Length per roll in Meters | 20 |
Size (mm) | 14x26 |
LED spacing (mm) | 16.6 |
LED quantity per meter | 60 |
Cutting Unit length (cm) | 10 |
LED quantity per unit | 16 |
Power consumption per meter | MAX 12.5W |
Max Loading Length (meter) | 10 |
Voltage | 24V DC |
Control mode: | DMX +SPI |
More pictures for best led digital neon flex price
Accessories: (Some models no so many accessories, please contact us)
Packing Details:
50meter per roll per carton
Installation Notes
*A Catalog is not a substitute for user manual.
*Always follow the cut marks provided user manual
*Cut only on the cut marks provided on the fixture housing
*When applying linear solutions to a channel make certain to use an appropriate silicone adhesive between the base of the channel profile and fixture housing to eliminate stretching over time.
Most of our Products has passed CE,ROHS, FCC, PSE, certificate
Shenzhen Topsung Lighting Co.,Limited with 8 years' rich experience on design/develop/export LED Products is one of the Factory of Topsung Industrial Co.,LTD. Its main procuts include: LED decoration lights (Neon, Rope, Strips,ect) & Indoor LED lights (tube, bulb, downlight, panel light,ect). Topsung Lighting cares about customer's request and deveoped new design lighting products. Welcome your inquiry!
- 360 Degree Round Neon (Digital) 16mm Diameter
- Dome Standard magic digital neon 14x26mm, 11x18mm
- Flat /square Magic digital neon-flex 11x19mm or 17x17mm
Thanks for reading!Feel free to contact us for the update information & price!
