Product Details:

Place of Origin: Guangdong,China
Brand Name: Topsung
Certification: CE,ROHS,UL
Model Number: lpv-100-24

Payment & Shipping Terms:

Minimum Order Quantity: 2pc
Price: US$10-40/pcs
Packaging Details: 1pcs/box
Delivery Time: 5-7 working days
Payment Terms: L/C,T/T,Western union,Money Gram,Paypal
Supply Ability: 5000pcs per week
Get Best Price Contact Now

Detail Information

Connection: Connect To Wire Usage: Light

Product Description

meanwell power supply 24v 100w led transformer imported from Taiwan



FEATURE & SPECIFICATION




Manufacturer: Topsung Lighting









Input Voltage 90 ~ 264Vac
Input Frequency 47 ~ 63Hz
Input Current 1.2A/115Vac 1A/230Vac
Inrush Current 30A/115Vac 60A/230Vac, cold start
Leakage Current 0.25mA / 240Vac
Line Regulation ±1.0%
Set Up, Rise Time 500ms, 20ms / 230Vac 500ms, 20ms / 115Vac at full load (for 5~36V)
  500ms, 30ms / 230VAC 500ms, 30ms / 115VAC at full load(for 48V)
Hold Up Time 50ms/230Vac 16ms/115Vac at full load
Over Current Protection 110 ~ 150% rated output power
  Hiccup mode, recovers automatically after fault condition is removed
Over Voltage Protection Shut down o/p voltage, re-power on to recover
Working Temperature -30°C ~ +70°C (Refer to output load derating curve)
Working Humidity 20 ~ 90% RH non-condensing
Storage Temperature, Humidity -40°C ~ +80°C, 10 ~ 95% RH
Temperature Coefficient ±0.03%/°C (0 ~ 50°C)
Vibration 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
Withstand Voltage I/P-O/P:3KVAC
Isolation Resistance I/P-O/P:>100M Ohms/500VDC 25°C 70%RH
Safety Standards UL1310 Class 2, CAN/CSA C22.2 No. 223-M91(except for 5V,48V), IP67 approved,
  Design refers to TUV EN60950-1, EN61347-2-13
EMC Compliance to EN55022 (CISPR22) Class B; EN61000-3-2,-3;
  EN61000-4-2,3,4,5,6,8,11; ENV50204, EN55024, light industry level, criteria A
MTBF 732Khrs min. MIL-HDBK-217F (25°C)
Dimensions 162.5 x 42.5 x 32mm





Meanwell LPV power supply:we have 35W,60W,100W,150W

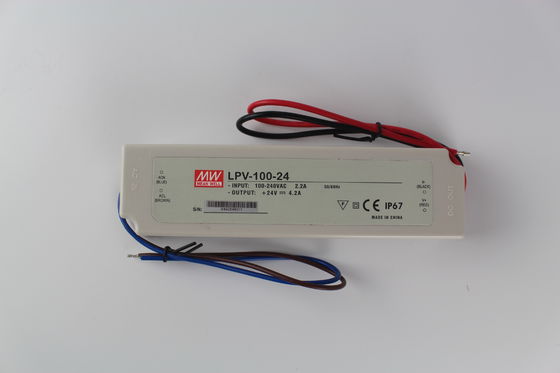

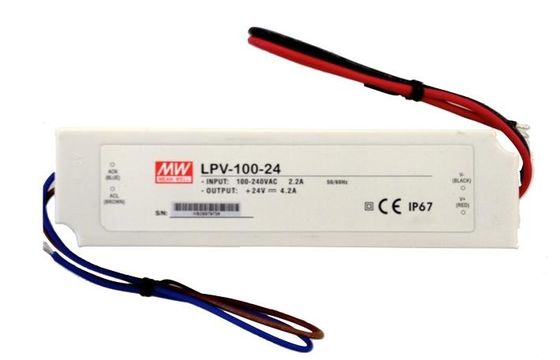

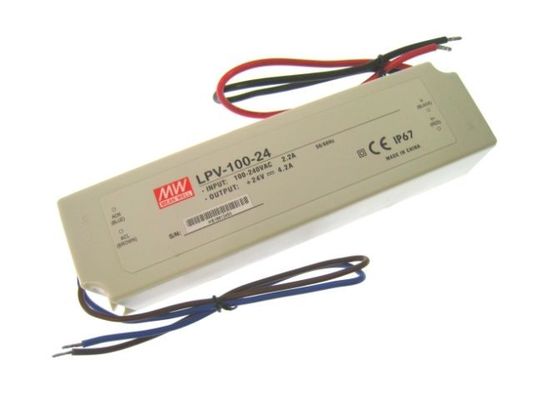

More pictures for power supply



meanwell power supply 24v 100w led transformer imported from Taiwan 0

meanwell power supply 24v 100w led transformer imported from Taiwan 1









Shipping and payment

meanwell power supply 24v 100w led transformer imported from Taiwan 2



CERTIFICATE


Most of our Products has passed CE,ROHS, FCC, PSE, certificate

meanwell power supply 24v 100w led transformer imported from Taiwan 3



FACTORY & CONTACT INFO


Shenzhen Topsung Lighting Co.,Limited with 8 years' rich experience on design/develop/export LED Products is one of the Factory of Topsung Industrial Co.,LTD. Its main procuts include: LED decoration lights (Neon, Rope, Strips,ect) & Indoor LED lights (tube, bulb, downlight, panel light,ect). Topsung Lighting cares about customer's request and deveoped new design lighting products. Welcome your inquiry!

Tel: 86-15986729150               Mail: lighting (at)topsung-tech.cn                Skype:lilyhu2013



  Thanks for reading!Feel free to contact us for the update information & price!
