garden decorate 100leds AC christmas led string light
Product Details:
Place of Origin: | Guangdong,China |
Brand Name: | Topsung lighting |
Certification: | CE,ROHS |
Model Number: | TP-CHR-SL-09 |
Payment & Shipping Terms:
Minimum Order Quantity: | 100 sets |
---|---|
Price: | US$10-20/set |
Packaging Details: | white box or gift box packing |
Delivery Time: | 5-7 working days |
Payment Terms: | L/C,T/T,Western union,Money Gram,Paypal |
Supply Ability: | 5000pcs/week |
Detail Information |
Product Description

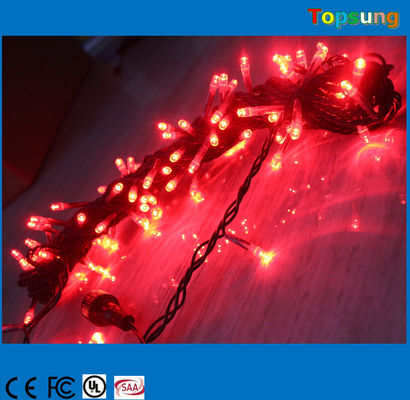

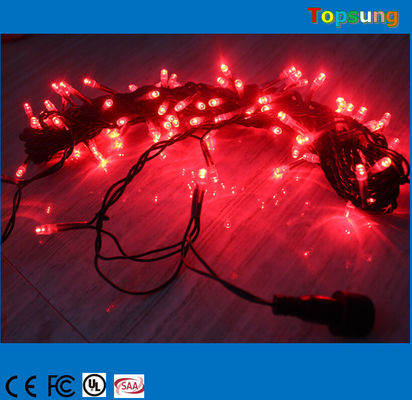

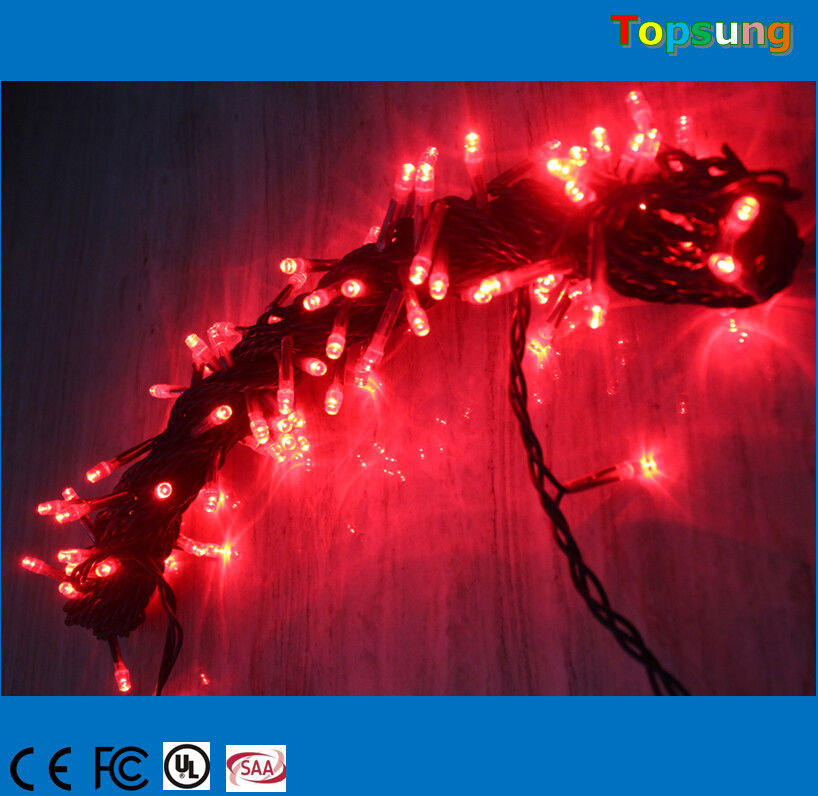

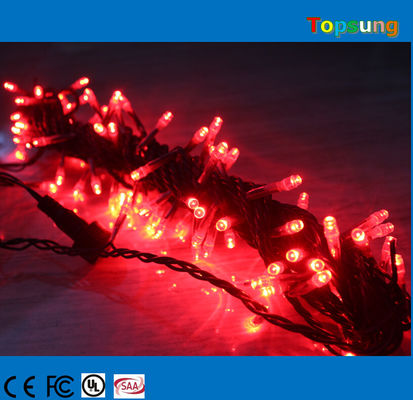

Commodity:garden decorate 100leds AC christmas led string light
1.Water proof: :protection class reach IP65
2. Anti Cold can be safe used below zero 40°C
2.CE & RoHS approval
3.Crystal cap with viewing angle 120 degree
Specification and Features of led string
Connect Up To 15 Sets With Ease
- Ideal for Parties and Christmas
- Leave Outside All Year
100LED/set,10m string,bulb space is10CM,connectable,steady,can be used indoor or outdoor ,D1.9mm 0.12*9 copper wire (with melted shrink tube on each lamp). 0.5M power cord with plug and ballast.
Max Connectable Quantity: 15-20 pcs suggest
Specification of led string |
Model No. | Length & LED QTY |
LED string, Bulb space is10CM,connectable,steady,water-proof can be used indoor or outdoor ,D1.9mm 0.12*9 copper wire (with melted shrink tube on each lamp). 0.5M power cord with plug and ballast. Input Voltage: 110V or 220V; Black/clear/green cable | TP-WS-100-10MB | 10M (100LED) |
TP-WS-200-20MB | 20M (200LED) | |
TP-WS-300-30MB | 30M (300LED) |
Other Color of led string
Red, Yellow, Blue, Green, Orange, pink, purple, RGB, Warm White, White
PVC Cable for white led string
1.9mm Diameter (0.12mm x 9pc copper wire)
PVC cable Colors: Clear White cable, dark green cable, black cable
If no mention, we will send the Clear White Cable
INSTRUCTIONS FOR USE
·This product consists of Light Emitting Diodes (LEDs) connected in a series and parallel arrangement and is used to extend connectable series of light sets.
·This product is fitted with a connector suitable for connecting additional sets of LEDs.
·To connect to another connectable light set:
a)Disconnect the light set from the power supply
b)Unscrew the connector cover at the end of the light set being extended.
c)Remove 3 pin plug, (if fitted) from the new light set by unscrewing the connector.
d)Connect the new light set to the end of the light set being extended.
e)Make sure all gaskets are in place and connectors are secure with all the covers screwed on tight.
f)Always make sure the connector cover is in place at the end of the last light set.
·A maximum of 5000 LEDs can be safely connected together to operate from a single plug.
·Make sure that the cable is completely unravelled and that there are no snags in the cable.
·To operate, plug into mains supply indoors not outdoors or in damp conditions.
LEDs
Non-replaceable LEDs - 3V 0.06W, the brightness of the LEDs as follows:
Red(120-150mcd)
Green(400-700mcd)
Yellow/Amber (120-150mcd)
Blue (150-250mcd)
White (550-700mcd)
Pink (200-350)
Warm White (550-700)
PLUG
EU plug, US plug 1.5Meter (include)
Au plug, UK plug 1.5meter + US$0.5/pc
POWER SUPPLY
Rated Voltage / Wattage: 230V with 0.5M EU plug or US plug
If need other type plug, please add US$0.5/pc
Voltage (please choose)
220V-240VAC
100-130VAC
